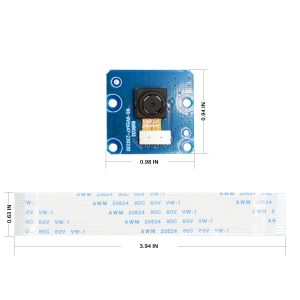

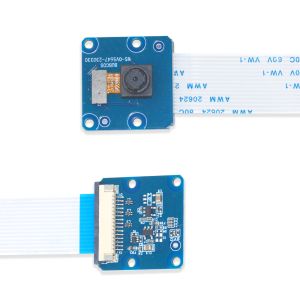

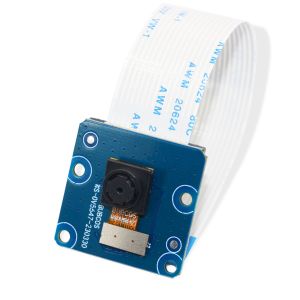

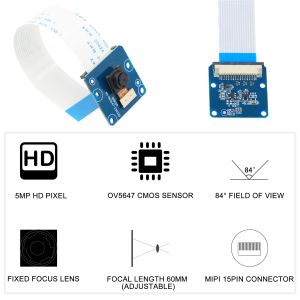

5MP MIPI Camera Module OV5647 Raspberry Pi Camera Module FF 1080P Wide Angle MIPI CSI

• OV5647 is a high-performance camera module developed for Raspberry Pi. It uses OmniVision's CMOS high-performance image sensor and advanced 1.4μm OmniBSI™ (back-illuminated) pixel technology. It has excellent low-light performance and higher quantum efficiency, and is suitable for high-definition image and video acquisition. The OV5647 MIPI camera module is directly connected through the CSI (Camera Serial Interface) interface of the Raspberry Pi and is compatible with a variety of Raspberry Pi motherboards (such as Raspberry Pi 1/2/3/4 and Zero series). It is widely used in embedded vision projects, educational experiments, intelligent monitoring, machine vision and IoT applications.

• The OV5647 Raspberry Pi wide-angle lens camera module is equipped with a 5-megapixel (2592×1944 resolution) OV5647 image sensor, which supports autofocus, high sensitivity and low power consumption. With a compact design, the sensor supports multiple output formats, including 8/10-bit RAW RGB data. It can be directly connected to the Raspberry Pi CSI interface via a 15-pin FPC cable, making it plug-and-play and suitable for mobile devices, digital cameras, and embedded vision systems.

MIPI CSI Camera Module Functions and Features

1) 1.4μm x 1.4μm pixels, using 0mniBSl technology to achieve high performance (high sensitivity, low crosstalk, low noise)
2) 5MP camera dedicated to Raspberry Pi Zero is compatible with all Raspberry Pi Zero/Zero w/Zero 2W models
3) Easy to install, plug and play without installing drivers. After connecting to the CSI camera interface on the motherboard and turning on the power, it can be operated in the system.
4) Autofocus/fixed focus/manual focus/wide angle/night vision optional, support customization
5) Support automatic exposure control (AEC) automatic white balance (AWB), automatic band filter (ABF), automatic 50/60 Hz brightness detection, and automatic black level calibration (ABLC).

CMOS Camera Module Applications

Intelligent monitoring and security systems, machine vision, face recognition, industrial inspection, fisheye photography, robots, drones, AI/VR devices, Internet of Things (IoT) and smart homes, etc.

Specifications:Raspberry Pi 5MP Camera Module
