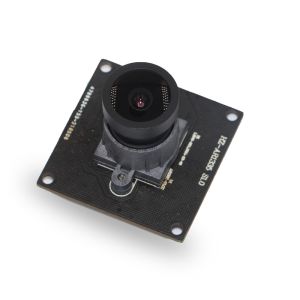

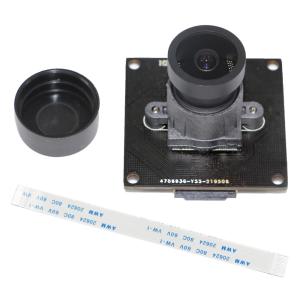

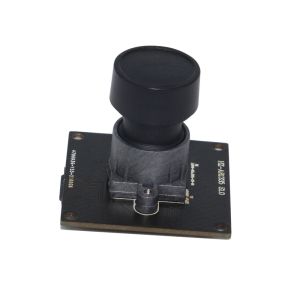

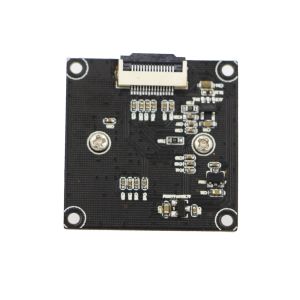

13MP AR1335 MIPI HD Camera Module FF M12 CMOS Sensor Drone Camera Module

OEM 13MP AR1335 HD Smartphone Camera Module 4K 30FPS CMOS Sensor HDR Industrial Camera Module MIPI

Product Description

Mobile Phone Camera Module

• The AR1335 is a 1/3.2-inch CMOS active-pixel digital mipi camera module with a pixel array of 4208H x 3120V. The camera module uses breakthrough 1.1-megapixel technology to provide excellent low-light image quality with leading sensitivity, quantum efficiency, and linear full well, making its image quality comparable to that of digital cameras.

Low Power Camera Module

• The AR1335 camera uses a sensor architecture focused on low power consumption and has a large chief ray angle (CRA) for low Z heights, making it ideal for smartphone and other mobile device applications. It integrates advanced on-chip camera features such as windowing, mirroring, column and row skipping modes, and snapshot mode.

High Resolution Camera Module

• The AR1335 HD camera module is programmable through a simple two-wire serial interface. The camera module can generate full-resolution images at up to 30 frames per second (fps) and supports advanced video modes including 4K 30fps, 1080P 60fps, and 720P 120fps.

AR1335 MIPI Camera Module Functions and Features

* 13MP CMOS sensor with advanced 1.1µm pixel BSI technology
* Data interface: 2-, 3- and 4-lane MIPI
* MIPI supports bit depth compression: 10-8 and 10-6 for lower bandwidth
* 3D synchronization control to support stereoscopic video acquisition
* 6.8 kbits One-Time Programmable Memory (OTPM)
* Programmable control: gain, horizontal and vertical blanking, automatic black level offset correction, frame size/frame rate, exposure, left-right and top-bottom image inversion, window size and translation
* Two on-chip phase-locked loop (PLL) oscillators for ultra-low noise performance
* On-chip temperature sensor
* Bayer pattern horizontal downscaler
* Simple two-wire Fast Mode+ serial interface More features
* Low dark current
* Interleaved multi-exposure readout for High Dynamic Range (HDR) still and video applications
* On-chip lens shading correction
* Support for external mechanical shutter
* Support for external LED or Xenon flash
* Extended flash duration until frame readout begins

CMOS Camera Module Applications

Smartphones, mobile devices, security monitoring, reversing images, driving recorders, industrial vision, automation equipment, sports cameras, drone cameras, AR/VR equipment, smart homes, medical and scientific research, Internet of Things (IoT) equipment, etc.

Specifications:13MP HD MIPI Camera Module
