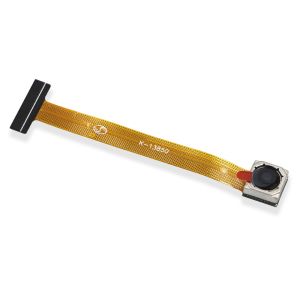

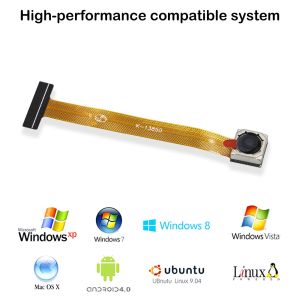

13MP OV13850 Camera Module 80 Degree Wide Angle For Mini Smartphone MIPI Camera

Low Light 13MP OV13850 30-pin Camera Module AF 80 Degree Wide Angle Mini 30FPS Smartphone MIPI Camera Module

Product Description

Smartphone Camera Module

• The OV13850 is a new PureCel® 13-megapixel CameraChip™ sensor designed for high-performance mobile devices. The OV13850 incorporates OMNIVISION’s most advanced process technologies and design methodologies to achieve the industry’s best low-light and high-light performance. In addition to significantly improved pixel performance, the OV13850 camera module also has best-in-class power efficiency, making it an ideal camera solution for high-end smartphones and tablets.

Low-light Camera Module

• The 1/3.06-inch OV13850 supports an active array of 4224 x 3136 pixels (13.2 megapixels). It runs at 30 frames per second (fps) with zero shutter lag and seamless switching between video and still image recording. In addition, the sensor supports 4K2K UHD video recording at 30 fps with a full horizontal field of view (FOV) and electronic image stabilization (EIS). The OV13850 HD camera module also supports high frame rate 1080p HD video recording at 60 fps and is equipped with EIS for high quality video recording. In addition, the OV13850 also supports high dynamic range (HDR) video timing in 1080p HD video mode at 30 fps.

OV13850 Micro Camera Module Functions and Features

1.1.12 µm x 1.12 µm pixel
2.Optical size of 1/3.06″
3.33.25° CRA
4.Support for phase detection auto focus (PDAF)
5.13MP at 30 fps
6.Programmable controls for: Frame rate, Mirror and flip, Cropping, Windowing
7.Supports images sizes: 13MP (4208×3120), 10MP(4208×2368), 3MP (2104×1560), 1080p, and more
8.Support for output formats: 10-bit RAW RGB
9.Total embedded one-time programmable (OTP) memory: 512 bytes (all bytes are reserved for internal use)
10.Two-wire serial bus control (SCCB)
11.MIPI serial output interface (1-lane, 2-lane, or 4-lane)
12.Two on-chip phase
lock loops (PLLs)
13.2x binning support
14.Image quality controls: Defect pixel correction (DPC), Automatic black level calibration (ABLC)
15.Suitable for module size of 8.5 x 8.5 x less than 5 mm

CMOS Camera Module Applications

Smartphones, laptops, tablets, drones and sports cameras, security and monitoring, driving recorders, AR/VR equipment, industrial testing, medical endoscopes, smart home devices, etc.

Specifications:HD laptop camera module
